SUPER-1000-FM Grease Interceptor that meets the requirements of the Fox Metro District in Illinois

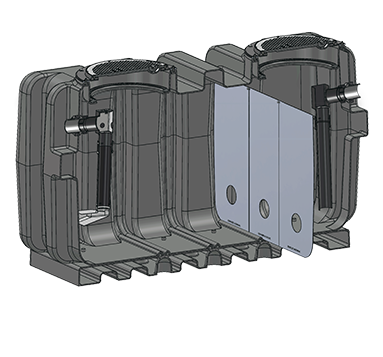

MIFAB® SUPER-1000-FM hydro mechanical grease interceptor with 1000 U.S. gallons of liquid holding capacity has a limited lifetime warranty and is made in the U.S.A. out of seamless, rotationally molded High Density Polyethylene with 3/8” uniform wall thickness. Interceptor is designed for above or below ground installation and includes extension pipe gasket for ADS 24N12 (pipe not included) for the adjustable lid system, sample port access, Type 316 stainless steel internal baffle that is secured in place with stainless steel hardware, deep seal trap covered by lid, internal flow control set to 100 GPM, base for support and floor level installation and 4” no hub inlet and outlet connections. Ductile Iron pickable lids, H-20 rated, proof-load tested to 40,000 lbs. provide a water / gas tight seal. The lids are designed in accordance with the loading requirements of AASHTO H-20. The high density polyethylene material is PE 3135 from Dow 9.39 with a density of 0.939 g/cm3. Note that the interceptor is tested and certified to the A112.14.3, (Type D), CSA B481 and listed with I.A.P.M.O. For indoor/outdoor use.

Hydro Mechanical  Miami-Dade 99% Efficient Spec. Sheet Miami-Dade DERM Submittal Package
