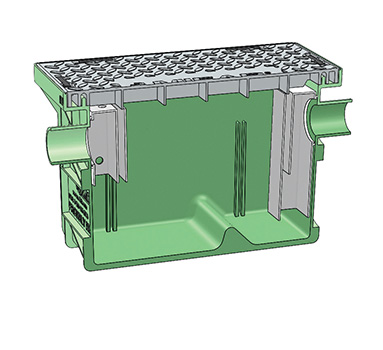

MIFAB® Lil-35-99 HDPE injection molded hydromechanical grease interceptor with flow rating of 35 GPM and grease holding capacity of 83 lbs. Unit shall include: removable baffle assembly, deep seal trap covered by lid, sewer gas stopper, securing latches, internal stainless steel orifice flow control plate, internal air relief by pass, HDPE injection molded, non skid, rectangular gasketed lid(s). Interceptor shall be tested and certified to the A.S.M.E. A112.14.3 Standard (Type A) and listed with I.A.P.M.O. The Lil-35-99 is also tested and certified as two units in series to the 99% efficiency requirements of the Miami-Dade DERM Standard (FOG 2.5 RER-DERM).
Downloads
General
Terms and Warranty
Installation
General
LIL-MAX Installation Guide
Grease Interceptor Maintenance Guide
Extensions
LIL-MAX Extensions Installation (PDF)
LIL-MAX Extensions Installation (Video)
Technical Documents
Specification Sheets
LIL-MAX Lid Extensions Spec. Sheet
Test Reports
IAPMO Approval
Cross References
Cross Reference Green Turtle Schier
