Miami-Dade DERM Interceptor Requirements

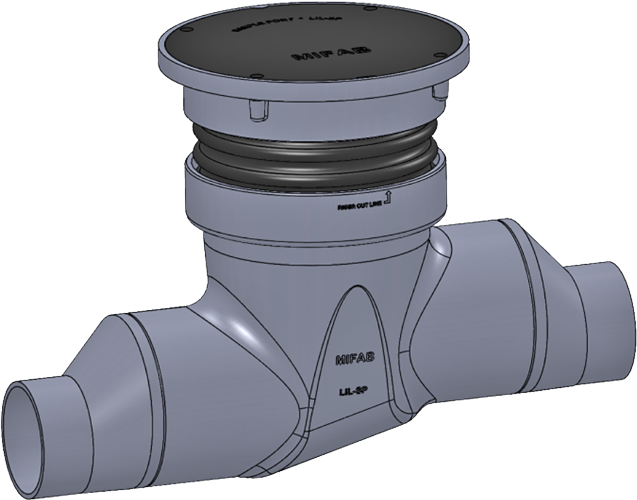

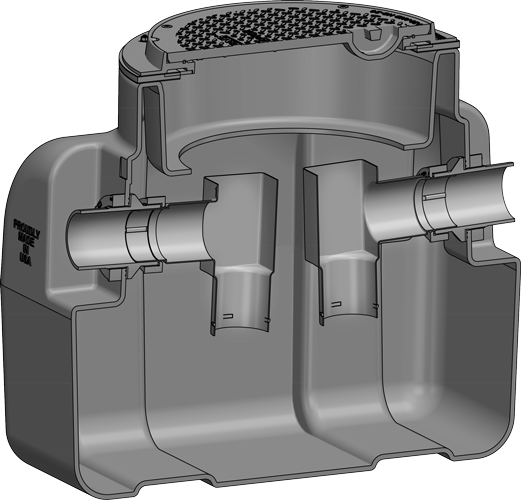

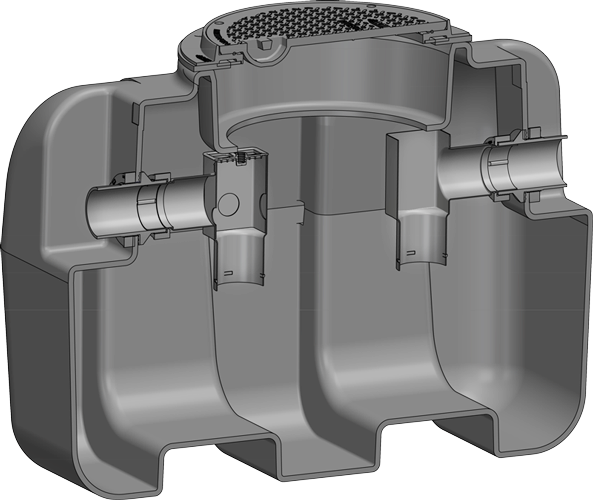

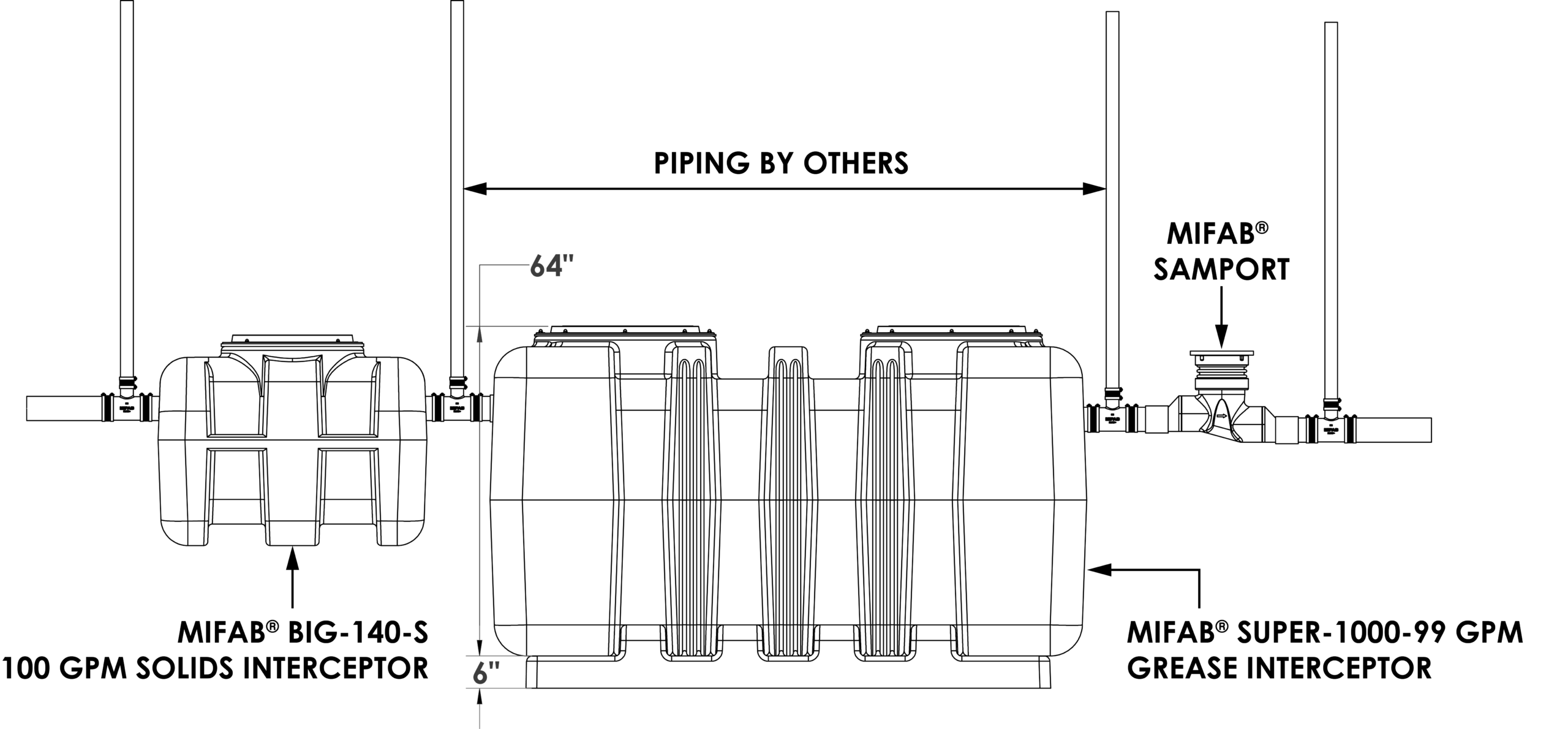

MIFAB® manufactures a complete range of third party tested 99% efficient hydromechanical grease interceptors to meet the latest Miami Dade DERM requirements – as specified in the FOG 2.5 Control Device Guidance Manual. A solids interceptor is required before the grease interceptor, and a sampling port is required after the grease interceptor.
SIZING
| NOMINAL PIPE SIZE | MINIMUM FLOW RATEper Ch.24-42.6 | MAXIMUM FLOW RATE per Manning’s formula |
| 2″ | 20 GPM | 20 GPM |
| 3″ | 23 GPM | 46 GPM |
| 4″ | 50 GPM | 100 GPM |
| 6″ | 147 GPM | 300 GPM |

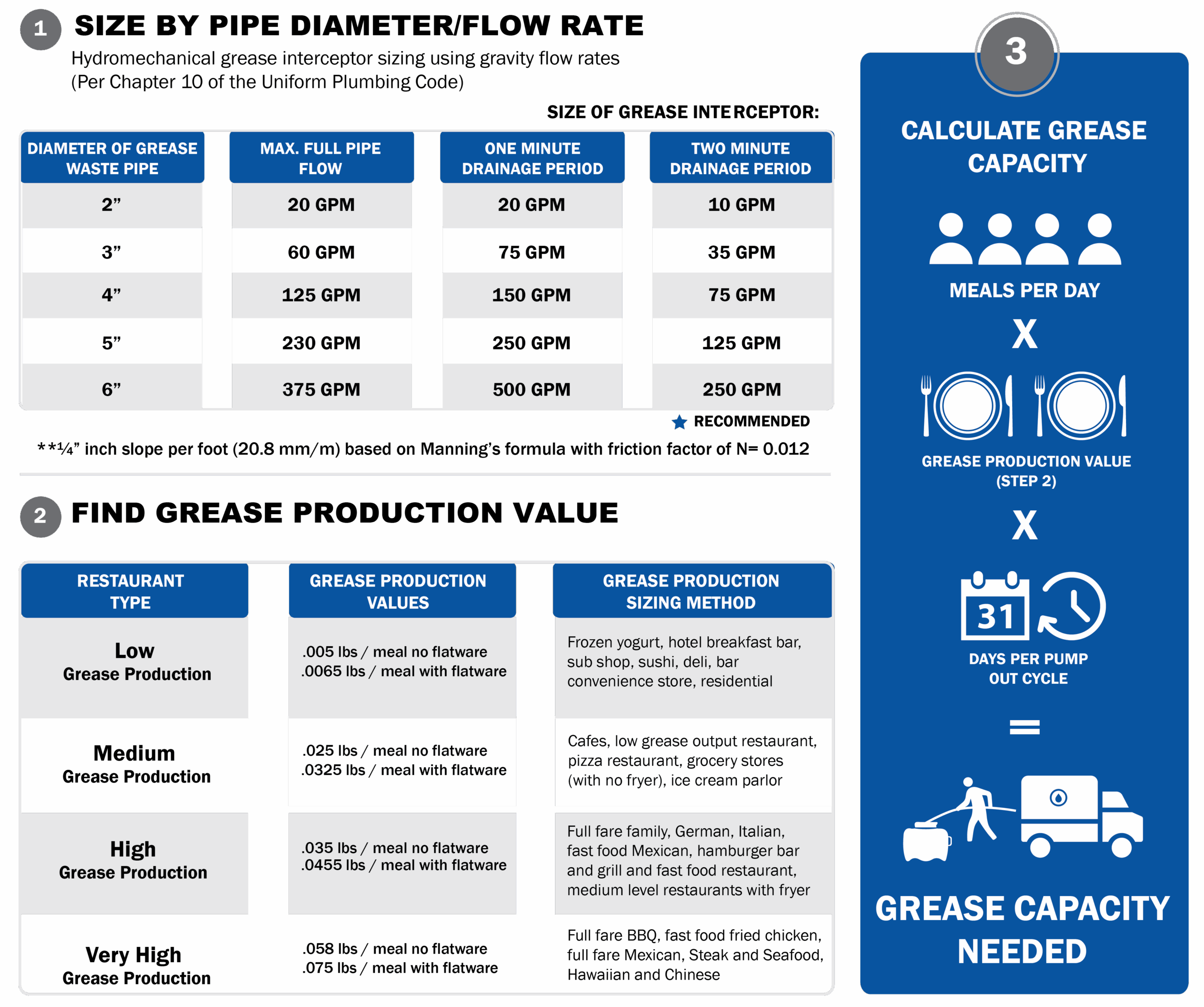

Miami-Dade DERM’s sizing requirements considers the GPM flow rate and the grease production of the restaurant in order to design the correct grease interceptor system. MIFAB®‘s “Size my Interceptor” interactive sizing software makes it easy to size the correct model for your project. The Miami-Dade DERM FOG 2.5 Guidance Manual does not specify the requirements of the solids interceptor and sample port to be used with the grease interceptor. The design engineer will specify this equipment. MIFAB® manufactures all of our grease, oil, solids and specialty interceptors in our Chicago factory.

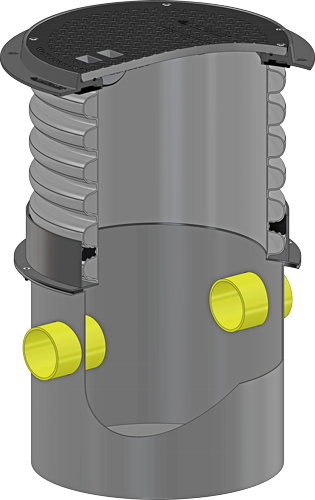

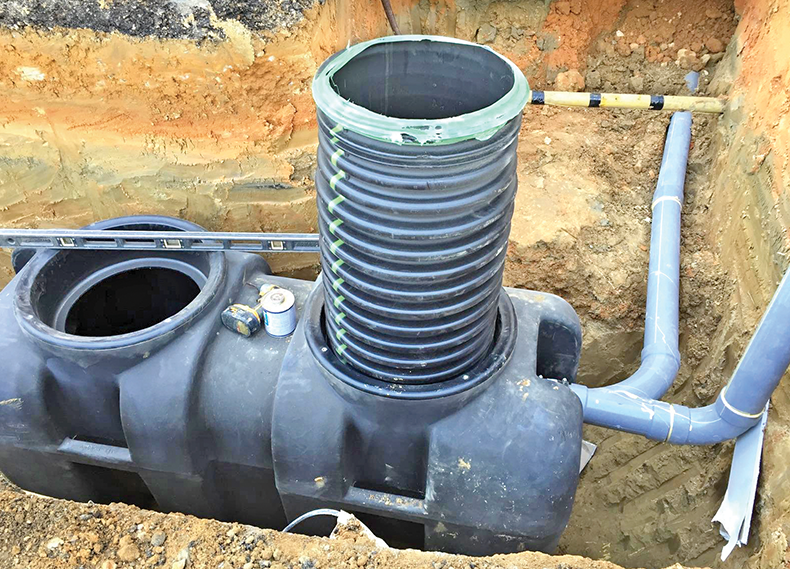

All of MIFAB’s Big and SuperMax interceptors use ADS corrugated pipe extensions (risers). 18″ dia. – Big Max and 24″ dia.- SuperMax. These are easy and cost effective to buy locally and are not proprietary.
Go to MIFAB’s Interceptor Sizing Program: www.sizemyinterceptor.com for an easy interceptor sizing tool.
MIFAB®'S GREASE INTERCEPTORS
All of MIFAB’s grease interceptors are tested and certified to the ASME A112.14.3 Standard, Type C and D.

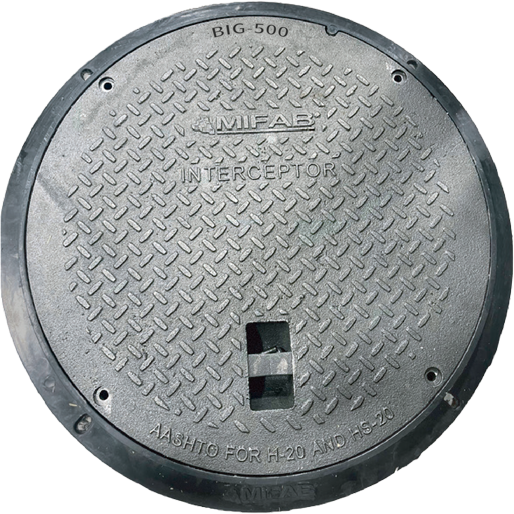

Top view of our Ductile Iron Lid with Pickable Feature
All of MIFAB’s Big and SuperMax interceptors are shipped standard with a ductile iron, H-20 load rated lid with a pickable design – no extra cost.
Miami-Dade DERM Submittal Package

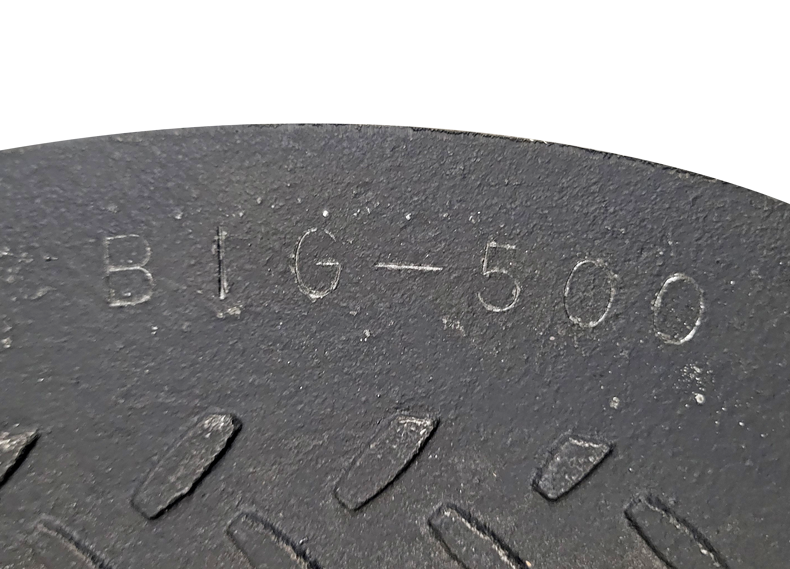

Ductile Iron Lid with Marking Etched into the Top of the Lid
All of MIFAB’s Big and SuperMax interceptors are shipped standard with their model number permanently etched into the top cover – for easy identification after installation.
Miami-Dade DERM Submittal Package

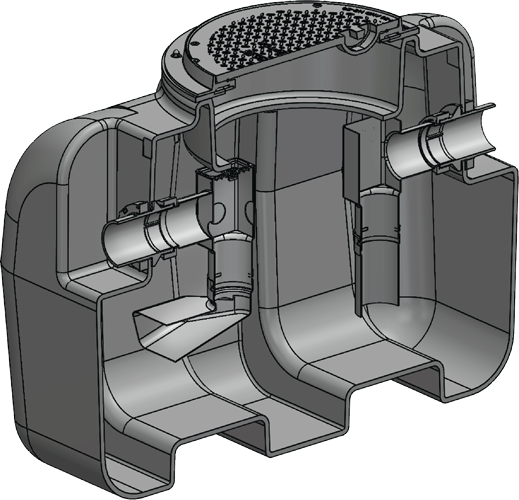

BIG-750-99
564 lbs. grease retention capacity at 50 GPM flow rate (single interceptor) at 99% efficiency. (ASME A112.14.3.2022, Type D)
Specification SheetMiami-Dade DERM Submittal Package

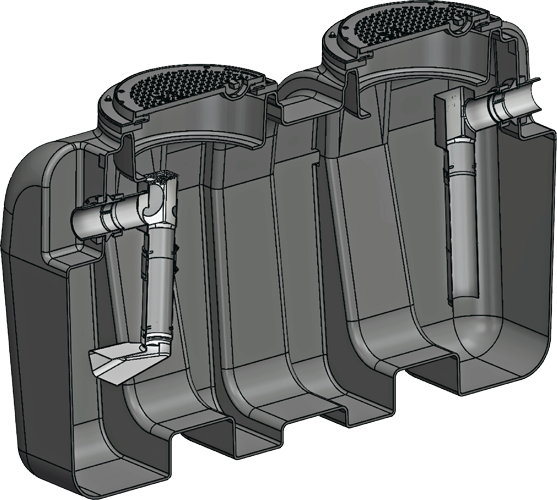

BIG-1150-99
1,811 lbs. grease retention capacity at 75 GPM flow rate (single interceptor) at 99% efficiency. (ASME A112.14.3.2022, Type D)
Specification SheetMiami-Dade DERM Submittal Package

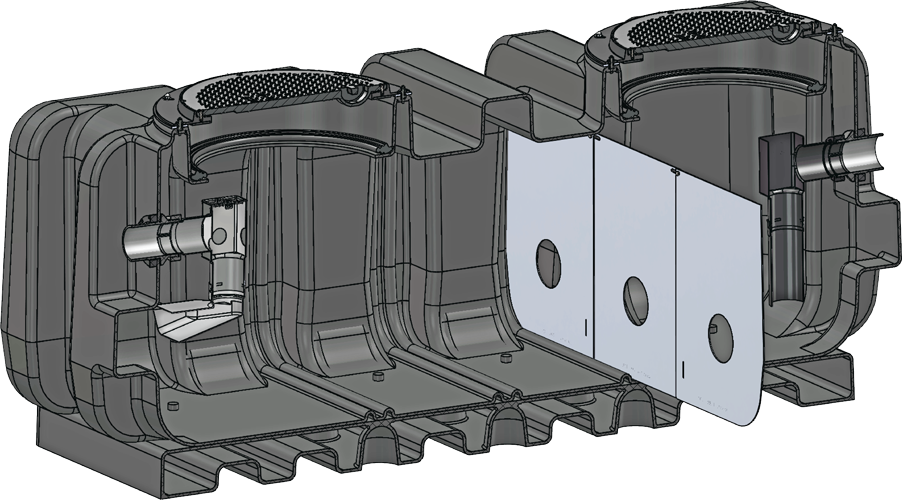

SUPER-500-99
3,356 lbs. grease retention capacity at 100 GPM flow rate (single interceptor) at 99% efficiency. (ASME A112.14.3.2018, Type C)
Specification SheetMiami-Dade DERM Submittal Package

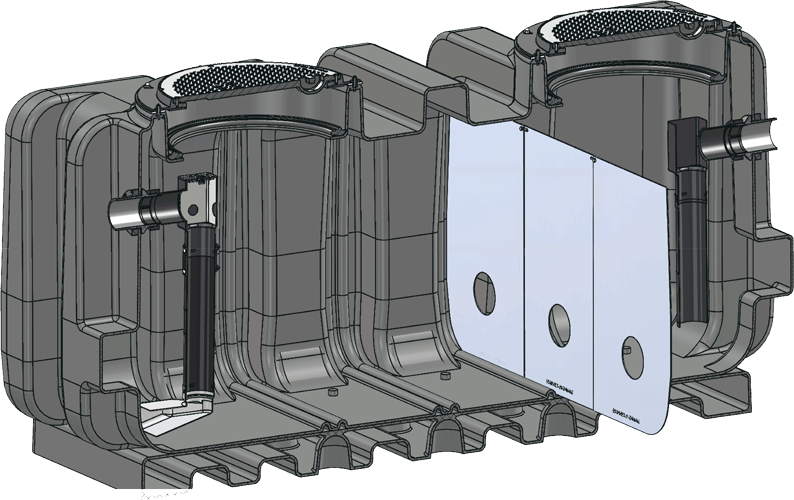

SUPER-750-99
4,148 lbs. grease retention capacity at 100 GPM flow rate (single interceptor) at 99% efficiency. (ASME A112.14.3.2018, Type C)
Specification SheetMiami-Dade DERM Submittal Package

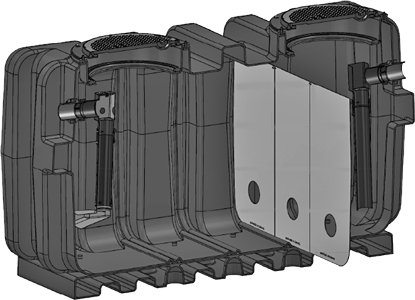

SUPER-1000-99
7,615 lbs. grease retention capacity at 100 GPM flow rate (single interceptor) at 99% efficiency. (ASME A112.14.3.2022, Type D)
Specification SheetMiami-Dade DERM Submittal Package

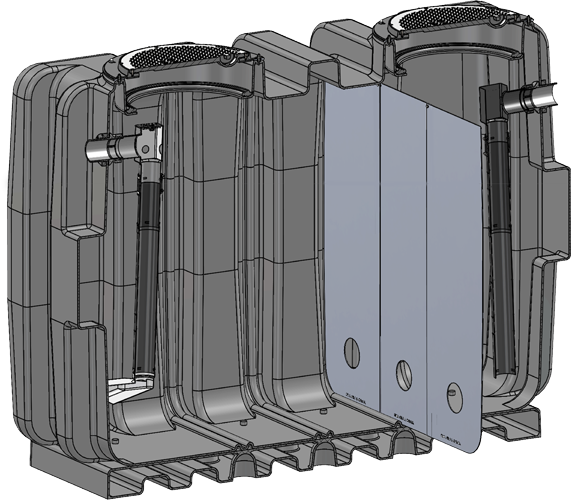

SUPER-1500-99
10,380 lbs. grease retention capacity at 100 GPM flow rate (single interceptor) at 99% efficiency. (ASME A112.14.3.2022, Type D)
Specification SheetMiami-Dade DERM Submittal Package
